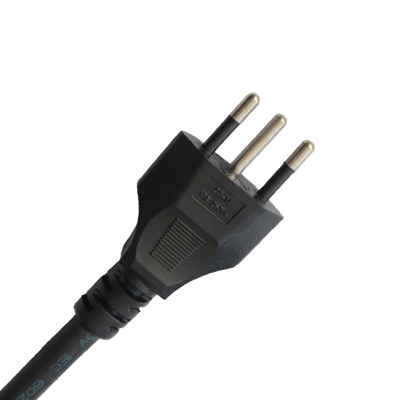

3 Pins Brazilian Plug AC Power Supply Cord 12A/16A
- Brazil 3 Prong AC Power Cord
- Rated at 250V, 12A/16A
- InMetro Approved, RoHS & REACH Compliant
- According to ABNT NBR NM 60884-1/NBR 14136
- Customization Available
SITCable supplies high quality 3 pins AC power cord for Brazil with InMetro certificated. The Brazil plug in SITCable adheres to the NBR 14136 standard. Rated at 250V and 12A/16A, it features three pins and three wires. The available cable type for this Brazil power cord are H07RN-F flexible rubber cable and H05RR-F flexible rubber cable. SITCable also offer custom options for this Australia power cord to meet clients’ different requirement. These three prong Brazil power cords find application in household appliances, office equipment, various commercial and industrial settings, etc.
Detailed Introduction
| Plug type | Type N Plug |
| Rated voltage/current | 250V/12A, 16A |
| Number of Poles and Wires | 2 pole, 3wire |
| Blade Material | Nickel Coated Brass |
| Copper Conductor Material | Bare or tinned stranded copper conductor |
| Sheath material | CPE |
| Color | Black, white, custom |
| Cable length | Custom length |
| Approvals | InMetro Approved |
| Standard | ABNT NBR NM 60884-1/NBR 14136 |
| Environmental Certifications: | RoHS, REACH |
| Quality System | ISO9001 |
| MOQ | 500pcs |
| Sample | Free |
| Package | Standard exported wooden case |
Available Cable Styles
| H07RN-F 3G1.0mm² | H07RN-F 3G1.5mm² |
| H05RR-F 3G1.5mm² | |
| 12A 250V | 16A 250V |
