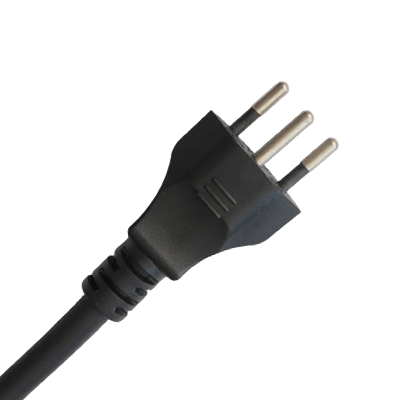

Three Pins Swiss Power Cord
- Swiss 3 Pins AC Power Cord
- Rated at 250V, 10A
- SEVApproved, RoHS & REACH Compliant
- According to IEC60884-1 SEV 1011 standard
- Customization Available
The Swiss SEV power cords in SITCable are manufactured according to IEC60884-1 and SEV 1011 standard. The plug type of this Swiss AC power cord is type J plug, features three round pins. With a rated voltage of 250V and a current of 10A, the available cable style of this Swiss power supply cord are highly flexible H05RR-F cable, H05RN-F cable, H07RN-F cable, H07RN8-F cable and H05RN8-Fcable. This three pins Swiss power supply cord has various application, used for powering household appliances, office equipment, consumer electronics, industrial machinery, medical devices, etc.
Detailed Introduction
| Plug type | Switzerland Type J Plug |
| Rated voltage/current | 250V/10A |
| Number of Poles and Wires | 3pole, 3wire |
| Blade Material | Nickel Coated Brass |
| Copper Conductor Material | Bare or tinned stranded copper conductor |
| Sheath material | CPE |
| Color | Black, white, custom |
| Cable length | Custom length |
| Approvals | SEV |
| Standard | IEC60884-1 SEV 1011 |
| Environmental Certifications | RoHS, REACH |
| Quality System | ISO9001 |
| MOQ | 500pcs |
| Sample | Free |
| Packaging | Exported Standard Wooden Case |
Available Cable Styles
| H05RR-F 3G0.75mm² | H05RN8-F 3G0.75mm² |
| H05RR-F 3G1.0mm² | H05RN8-F 3G1.0mm² |
| H05RR-F 3G1.5mm² | H07RN-F 3G1.0mm² |
| H05RN-F 3G0.75mm² | H07RN8-F 3G1.0mm² |
| H05RN-F 3G1.0mm² |
