HHFF Cable
- PSE certified, ROHS & REACH compliant
- Rated at 300V, AC power cable
- JISC3301 standard
- Suitable for the heavy-duty, household appliances, power tools and various electrical equipment and tools for mobile cable,etc
HHFF cable adhering to PSE Standard, is type of flexible rubber cable used in Japan. It comprises bare or tinned stranded copper conductor, insulated with ethylene propylene rubber, sheathed with Chlorinated Polyethylene. This HHFF cable typically has two cores and its cross-sectional size of the conductors are available in 0.75mm², 1.25mm², 2.0mm². The HHFF cable is suitable for the heavy-duty, household appliances, power tools and various electrical equipment and tools for mobile cable.
| According to the standard | JISC3301C3005 |
| Operating temperature | -20℃+90℃ |
| Rated voltage | 300V |
| Conductor | Bare or tinned stranded copper conductor |
| Insulation material | EPR |
| Sheath material | CPE |
HHFF Cable Construction
| No of cores x nominal cross sectional area | Copper wire number x diameter | Insulation thickness | Completed Diam(mm) | Max conductor resistance(Ω/km) | |
| The average | The minimum | ||||
| 2X0.75mm² | 30X0.18mm | 1.0 | 0.8 | 3.2×6.4±0.15 | 24.7 |
| 2×1.25mm² | 50X0.18mm | 1.0 | 0.8 | 3.6×7.2±0.15 | 14.7 |
| 2×2.0mm² | 37X0.18mm | 1.0 | 0.8 | 3.9×7.8±0.20 | 9.5 |
Related products
-

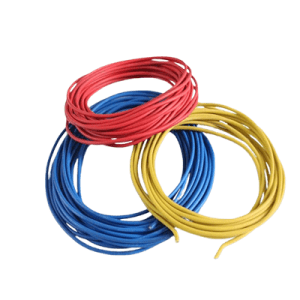

Rubber CableH03RN-F Cable
-
